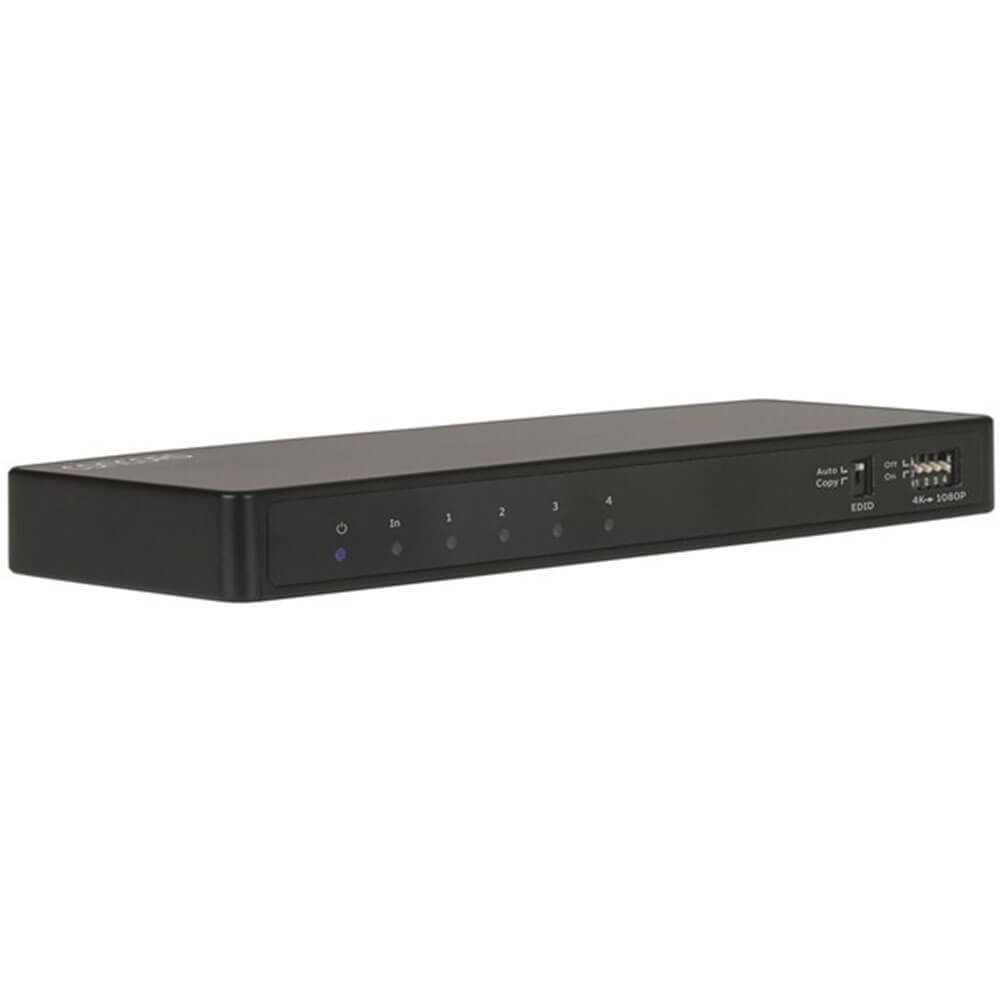

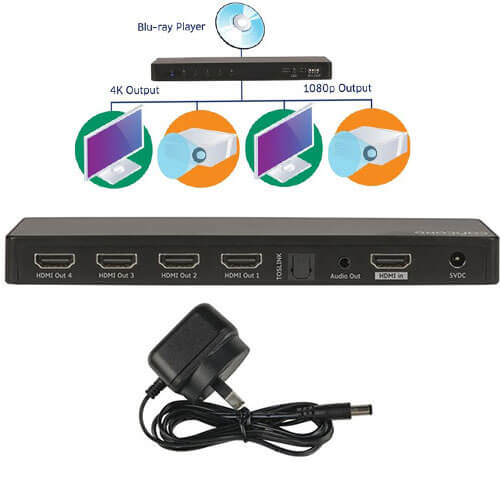

4K UHD Simultaneously split up to four different HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player. With 4K Ultra-High-Definition (UHD) support, there's no reduction in picture quality so you can still enjoy the most your equipment has to offer. A built-in downscaling function allows 4k video to suit 1080p screens, and the audio extractor provides analogue and digital outputs to connect up an amplifier or active speakers. Supports audio up to 7.1 surround sound, HDCP 2.2 for the latest hardware compatibility, and HDR (High-Dynamic-Range) for a wider range of life-like colours and brightness. The smart EDID (Extended Display Identification Data) support also ensures your monitor knows how to configure correctly to match the source signal. Includes mains power adaptor.
Features: - Up to 4K UHD Video Resolution at 60Hz - 4K to 1080p Downscaling - Analogue and Digital Audio Output
Specifications: Inputs: 1 x HDMI Outputs: 4 x HDMI, 1 x TOSLINK Optical, 3.5mm Stereo Audio HDMI: 2.0b HDCP: 2.2, 1.4 HDR: 10 Resolution: Up to 4K (3840 x 2160) @ 60/50/30Hz Video Bandwidth: 18Gbps Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Colour Depth: 8-bit Power: 5VDC, 1A Dimensions: 180(W) x 62(D) x 14(H)mm
Product Specifications
- Digital Audio Format : LPCM, Dolby TrueHD, DTS, DTS-HD, Dolby Digital/Plus/Ex, DSD (Direct Stream Digital)
- Width : 180.0mm
- Height : 14.0mm
- Depth : 62.0mm
- Weight : 227.0g
- DC Plugpack Voltage : 5.0V
- DC Current Draw : 0.7A
- Item Connection : Barrel Plug
- Suitable PSU Included : true
- Supported Display Resolution : 4K UHD (3840 x 2160)
- Resolution Frequency : 30.0Hz, 60.0Hz
- HDMI Version : 2.0b
- HDMI Maximum Data Rate : 18.0Gb/s
- HDMI Maximum Colour Depth : 8.0b
- HDMI Colour Space Compatibility : YCbCr 4:4:4, YCbCr 4:2:2
- HDCP Version : 2.2, 1.4
- HDR Version : HDR 10
- Switcher/Converter Type : Distribution Amplifier Splitter
- Input type : HDMI
- Input Connection : HDMI Type-A
- Number of inputs : 1.0pc
- Output Type : HDMI, Digital Audio
- Output Connection : HDMI Type-A, TOSLINK, 3.5mm Stereo
- Number of Outputs : 6.0pc
- Power Requirement : External Power Required
- Additional Functions : HDMI 4K UHD to 1080p Downscaling
- Length : 23.5 cm
- Width : 11 cm
- Height : 7 cm
