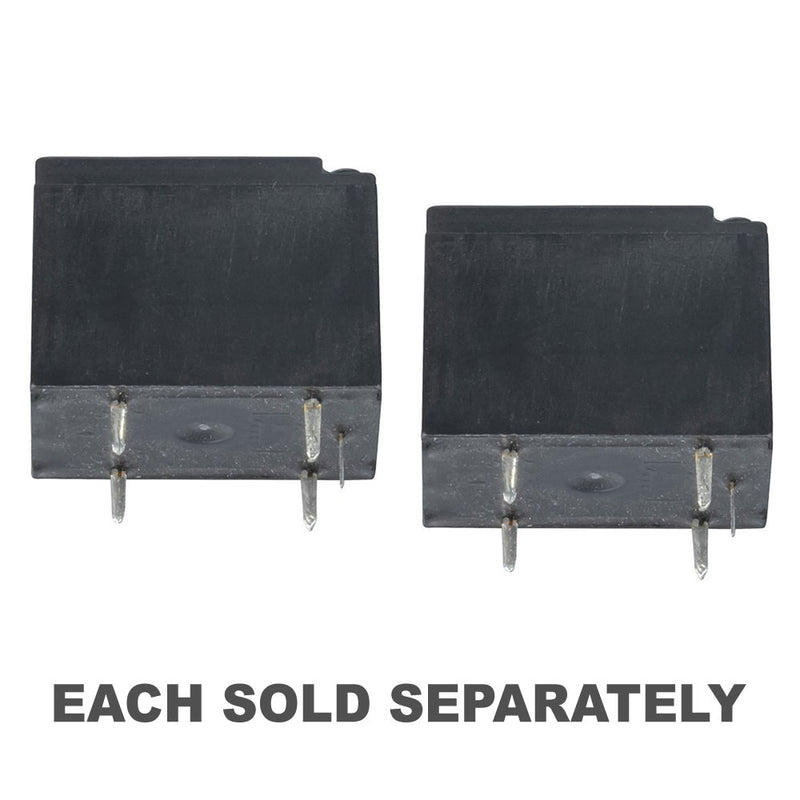

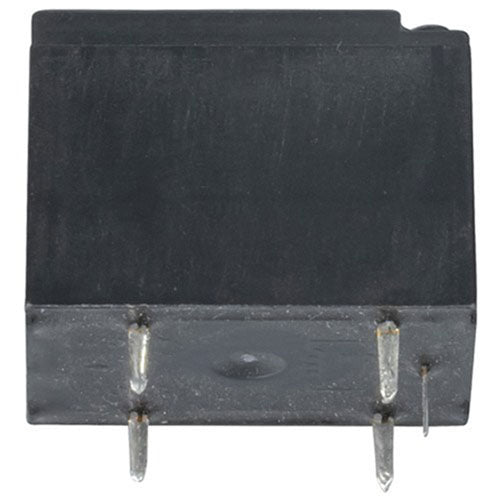

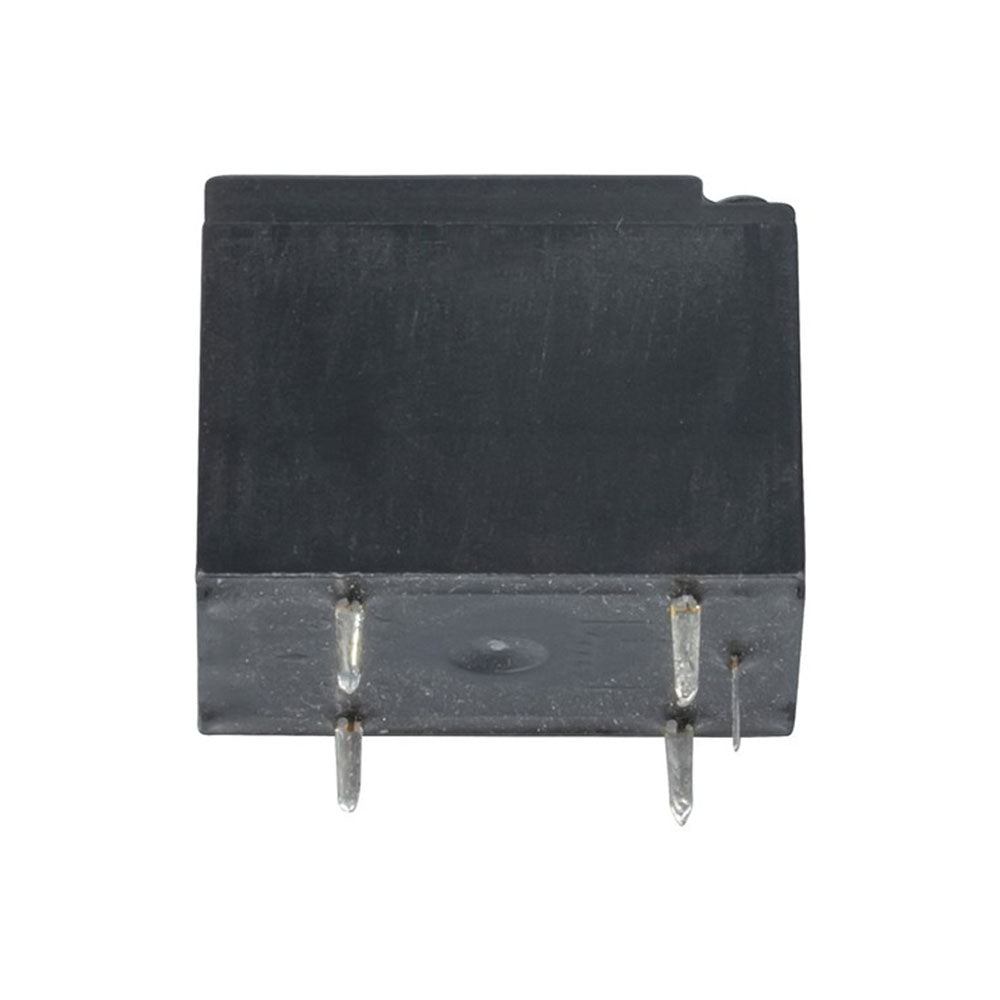

Rated voltage - 12V DC- Coil current - 30mA- Coil resistance - 400ohms- Contact rating - 10 Amp- Size - 18 x 15 x 14(H)mm- NO/NC contacts.
Product Specifications
- Input : DC
- Contact format : SPDT
- Coil Resistance : 400Ω
- Coil Current : 30mA
- DC Contact Voltage : 12V
- DC Switching Current (Opening) : 3A
- Length : 1.8 cm
- Width : 1.5 cm
- Height : 1.4 cm
