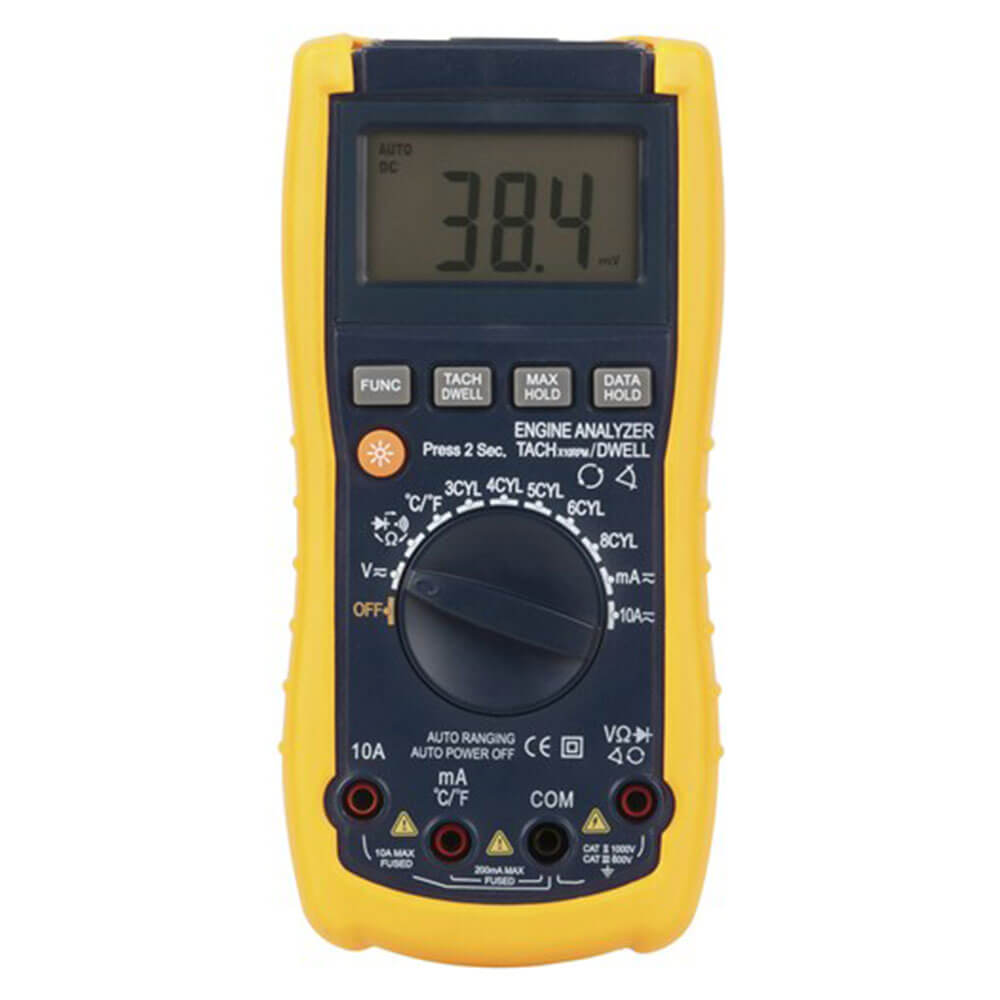

Perfect for the workshop as an an engine analyser as well as basic DMM. Full dwell angle measurement and tacho, with max / data hold and bright backlit LCD.
Features:
- Dwell angle
- RPM x10
- Data hold
- Max hold
- Continuity & diode test
- Backlight
- Auto power off
- Display: 2000 count
- Measurement Category: Cat II 1000V / Cat III 600V
- Diode Test
- Continuity Test
Product Specifications
- Continuity buzzer : true
- AC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
- AC Current Accuracy : 1.8%
- DC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
- DC Current Accuracy : 1.5%
- Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm, 20.0Megaohm
- Resistance Accuracy : 1.0%
- Outdoor / Exterior Scale : -20.000000 Degrees C, 1000.0 Degrees C
- Outdoor / Exterior Scale : -4.000000 Degrees F, 1832.0 Degrees F
- AC Voltage Ranges : 2.0V, 20.0V, 200.0V, 700.0V
- AC Voltage Accuracy : 1.0%
- DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
- DC Voltage Accuracy : 0.8%
- Records Maximum : true
- Data Hold : true
- Display Type : LCD
- Display Backlight : LED Backlit
- Safety Rating Cat : Cat III
- Safety Rating Max Volt : 600.0V
- Count / Maximum Reading : 2000.0 count
- Autorange : true
- Measures dwell : true
- Length : 180.0mm
- Width : 87.0mm
- Depth : 50.0mm
- Size / Shape : AAA
- Battery quantity : 2.0pc
- Measurement Range Count : 2000.0 count
- Meter Input Impedence : 10.0Megaohm
- Measures diode : true
- Length : 22 cm
- Width : 16 cm
- Height : 6 cm
